There isn’t one standard wheelchair width. As a practical example, current manual wheelchairs with an 18-inch seat can be around 25.5 to 26 inches wide overall, while wider heavy-duty chairs may be around 28 inches. Power wheelchairs and specialist frames vary again.
The distinction that matters is seat width versus overall width amongst a variety of the best wheelchairs available on the market. Seat width is part of fitting the chair to the person. Overall width is the outside measurement you need when checking whether the wheelchair will clear a doorway, hallway or other tight space.
By Ray Butcher, Certified Senior Fitness Instructor
SeniorFitness is reader-supported. We may earn a commission through products purchased using links on this page. Learn more about our process here
Seat Width Is Not the Width of the Chair
An 18-inch wheelchair is usually describing the seat, not the full frame from wheel to wheel. Drive Medical, for example, currently lists an 18-inch-seat Silver Sport 2 at 26 inches overall. Medline lists an 18-inch-seat Guardian K3 at 25.5 inches overall. That extra width comes from the frame, armrests and wheels.
Heavy-duty wheelchairs can need more room. Drive’s current bariatric Sentra EC is listed at 28 inches overall even though it is available with several seat widths. At the other end of the scale, specialist narrow power-chair bases can be considerably slimmer. The chair type therefore matters just as much as the nominal seat size.
If you are comparing frames rather than simply checking a doorway, SeniorFitness’ guide to wheelchair types explains how manual, transport, power and specialist designs differ.
Which Measurement Should You Use?
For access around the home, look for overall open width in the manufacturer’s specifications. Do not use folded width: a folding manual wheelchair may collapse to roughly half its working width for storage, but that tells you nothing about the space it needs while someone is sitting in it.
Seat width answers a different question. It is one of the key fitting dimensions used to match a manual wheelchair to the user’s body. The Academy of Neurologic Physical Therapy’s fitting guide recommends measuring the seated hip width and allowing additional clearance, while broader wheelchair evaluation also considers seat depth, seat height, back height and other body measurements.
A chair that is unnecessarily wide can make manual propulsion and postural support more difficult, while one that is too narrow can create pressure and comfort problems. If the wheelchair will be used regularly or for significant mobility needs, proper assessment and fitting are worth more than choosing a chair from one dimension alone.

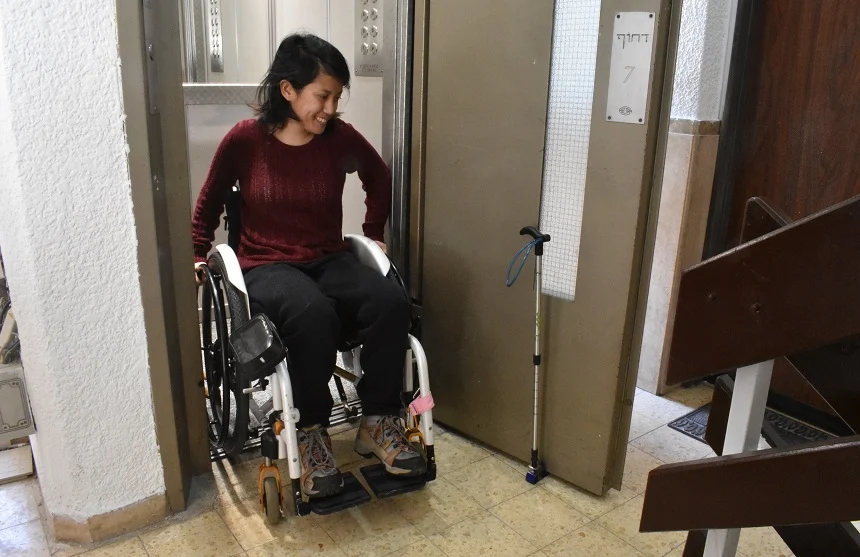

Will a Wheelchair Fit Through a Door?
Measure the clear opening of the doorway with the door open to the position it will normally be in, then compare it with the wheelchair’s overall width. The usable opening can be smaller than the nominal door size because the open door itself occupies part of the frame.
For a code reference, the U.S. Access Board’s ADA Standards use a 32-inch minimum clear opening for doors on an accessible route. Accessible routes are generally required to provide at least 36 inches of continuous clear width. Those figures apply to facilities covered by the standard; they do not mean that every existing home has 32-inch door clearance.
Measure the real route the chair will use, particularly bathroom doors, bedroom doors and turns around furniture. A wheelchair can clear the doorway itself and still be awkward to manoeuvre if the approach or space immediately beyond it is tight.
A Few Real-World Width Examples
| Example | Seat width | Overall width |
|---|---|---|
| Medline Guardian K3 manual wheelchair | 18 in | 25.5 in |
| Drive Silver Sport 2 manual wheelchair | 18 in | 26 in |
| Drive Cruiser III manual wheelchair | 18 in | 26 in |
| Drive Sentra EC heavy-duty wheelchair | 20–24 in options | 28 in |
These are examples, not universal standards. Wheel position, frame design, armrests, seat size and whether the chair is manual or powered all affect the final outside dimension. Always check the specification for the exact configuration you are considering.
The existing Medline transport wheelchair is another useful illustration: its product name highlights a 19-inch seat, which is not the same thing as saying the entire chair is 19 inches wide.
Width Is Only One Part of Wheelchair Fit
Wheelchair fitting is not just about whether the frame passes through a doorway. Clinical fitting guidance considers seat width and depth, seat-to-floor height, back height, arm position and the user’s own body measurements. StatPearls likewise describes wheelchair evaluation as an individualized process rather than a single standard size.
That becomes even more important with specialist seating or significant postural needs. The existing SeniorFitness article on wheelchair considerations for amputees, for example, sits in a very different fitting context from choosing a basic transport chair.
Weight is another practical dimension people often compare at the same time. Our separate guide explains how wheelchair weight varies across common designs.
Accessibility Dimensions Around the Wheelchair
Once the chair itself fits, the surrounding space still matters. This is where wheelchair dimensions and building-accessibility dimensions are easy to mix together.

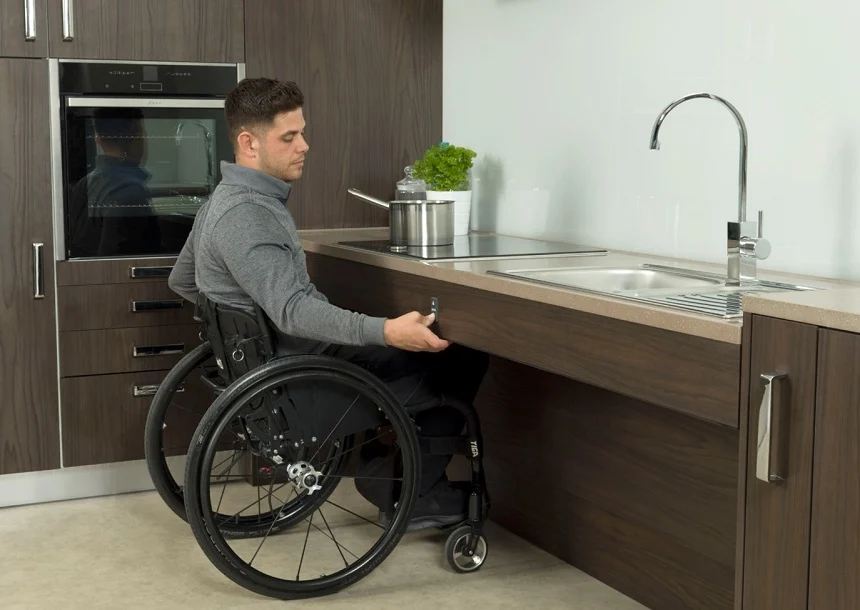

Counter and work-surface access depends on more than the wheelchair’s overall width. Reach, knee and toe clearance, approach direction and the height of the surface all affect whether a space is genuinely usable. A generic statement that one counter height works for every chair and user is therefore not very helpful.

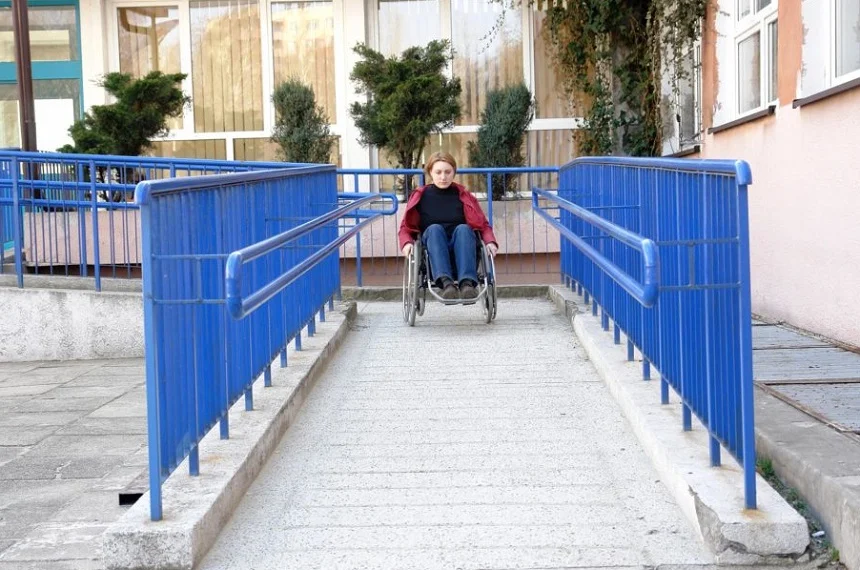

Ramps have their own dimensions too. Under the current U.S. ADA Standards, a ramp run is generally required to provide at least 36 inches of clear width. The usual maximum running slope is 1:12, each run is limited to 30 inches of vertical rise, and level landings are required at the top and bottom. Handrails are required for ramp runs with more than 6 inches of rise, subject to the standard’s exceptions.
Those are accessibility requirements for covered facilities, not instructions for building a private residential ramp without checking local codes. Home modifications can also depend on the wheelchair, available space and the user’s needs.
The Number to Take Away
If someone asks how wide a wheelchair is, “about 26 inches” is a reasonable mental picture for many conventional 18-inch-seat manual chairs—but it is not a standard you should design a doorway or purchase around. Check the exact wheelchair’s overall open width.
For choosing among manual, transport and power options, the SeniorFitness wheelchair guide covers the wider decision. Readers comparing powered models can also move on to the electric wheelchair guide once clearance and fit requirements are known.
For independent accessibility references, see the U.S. Access Board’s accessible-route requirements and its ramp guidance.
